Mesh count is one of the first screen printing terms most printers learn.
It is also one of the most misunderstood.
A printer may say:
“I’m using a 110 mesh.”
But what does that actually mean?
Many new printers think 110 mesh means there are simply 110 holes in the screen. Thanks to social media, short videos, and quick explanations, this misunderstanding has become common.
But mesh count does not mean “number of holes.”
Mesh count refers to the number of threads per linear inch in the mesh.
That difference matters.
Ink does not pass through a number on a chart. Ink passes through the actual open spaces between the threads. Those open spaces are affected by mesh count, thread diameter, mesh thickness, open area, stencil thickness, ink type, squeegee pressure, and the fabric being printed.
Understanding mesh count helps you choose the right screen for the job instead of guessing.

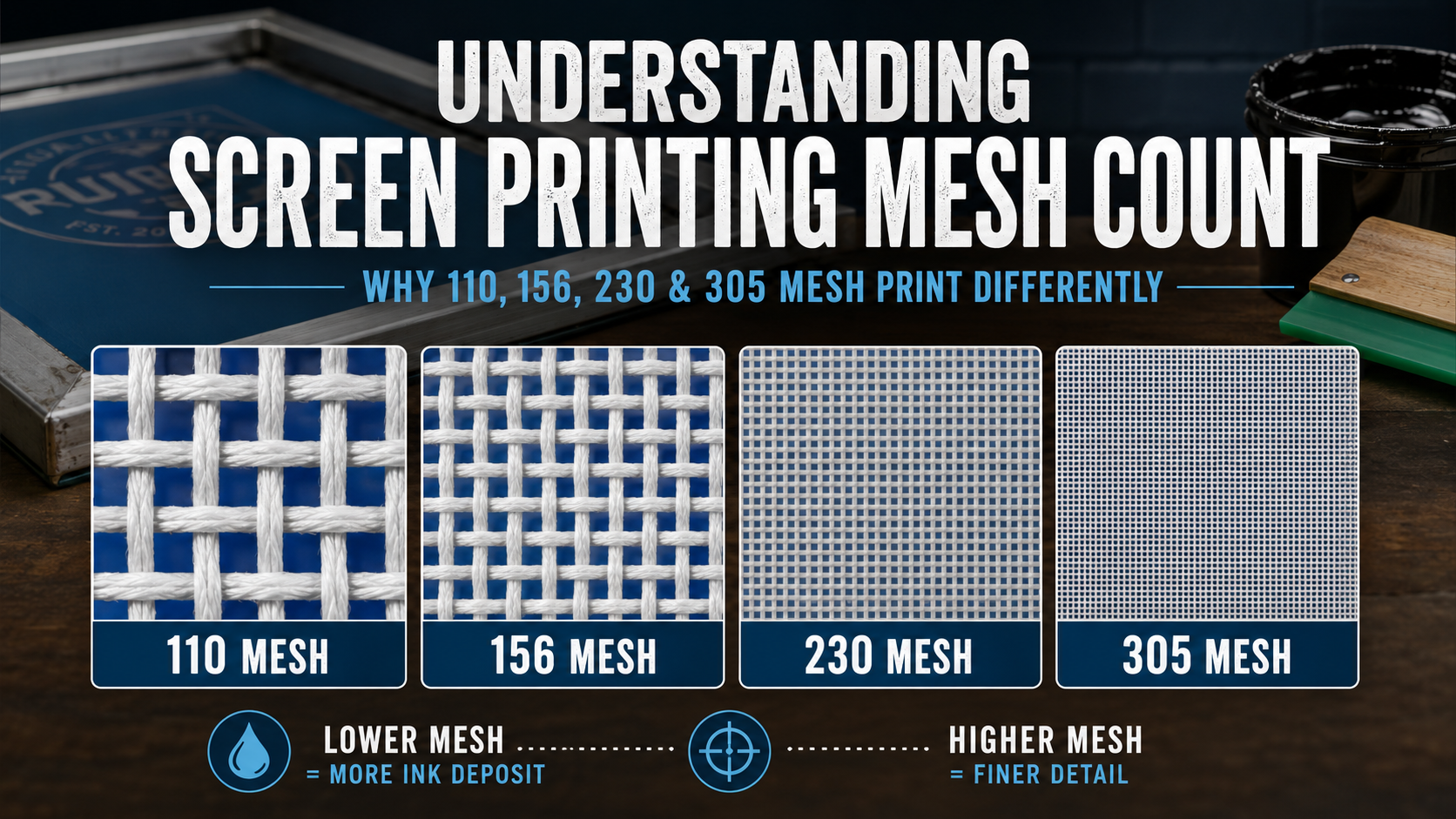

What Does Mesh Count Actually Mean?
When we say 110 mesh, we mean there are about 110 threads per linear inch in one direction of the mesh.
A lower mesh count has fewer threads per inch.
A higher mesh count has more threads per inch.
In simple terms:
Lower mesh count = larger openings and more ink deposit.
Higher mesh count = smaller openings and less ink deposit.
That is the basic idea.
But there is more to it than that.
The size of the thread also matters.
A 48 mesh screen has fewer threads per inch, but those threads are usually much larger. That means the open area is not only wider, but the mesh structure is also deeper. That screen can hold and release a lot more ink.
A 230 mesh screen has many more threads per inch, and the threads are usually smaller. The open spaces are smaller and shallower, so the screen deposits less ink.
That is why different mesh counts print so differently.
Mesh Count Is About Ink Control
Mesh count controls how much ink can pass through the screen.
That affects:
- Opacity
- Detail
- Print feel
- Edge definition
- Halftone control
- Ink clearing
- Flash time
- Cure time
- Production speed
- Durability
A screen that deposits too much ink can make the print heavy, rough, blurry, or slow to cure.
A screen that deposits too little ink can make the print weak, dull, transparent, or hard to cover on dark garments.
The goal is not to always use the lowest mesh possible.
The goal is to use the mesh that matches the artwork, ink, garment, and final print result.
Why Lower Mesh Counts Deposit More Ink
Lower mesh counts have larger openings.
They are useful when you need more ink to pass through the screen.
Examples include:
- Heavy white ink
- Athletic numbers
- Bold spot color designs
- Puff ink
- Glitter ink
- Shimmer ink
- Specialty inks
- Rough fabrics
- Dark garments where opacity matters
A lower mesh count can help deposit enough ink to cover the fabric.
But there is a tradeoff.
Too much ink can create a heavy print. It can also increase flash time, cure time, cracking risk, and hand feel.
A 110 mesh may be helpful for a bold white print on a black cotton shirt, but it may be too much for small detail or a soft fashion print.
More ink is not always better.
Controlled ink is better.
Why Higher Mesh Counts Deposit Less Ink
Higher mesh counts have smaller openings.
They are useful when you need more control and less ink deposit.
Examples include:
- Fine detail
- Small text
- Thin lines
- Halftones
- Simulated process
- 4-color process
- Soft-hand prints
- Dark ink on light garments
- Thin inks
- Water-based or discharge printing when appropriate
A higher mesh count can produce sharper edges and better detail because it limits how much ink is deposited.
But again, there is a tradeoff.
If you use too high of a mesh for thick white ink on a dark garment, the print may look weak because not enough ink passes through the screen.
A 230 mesh can be great for detail, but it may not be the right choice for a heavy white athletic print.
Mesh Count Is Not Just About Detail
One of the biggest beginner mistakes is choosing mesh only by artwork detail.
Detail matters, but it is only one part of the decision.
You also have to consider:
- What color ink are you printing?
- What color shirt are you printing on?
- Is the ink opaque or transparent?
- Is the garment cotton, polyester, fleece, or performance fabric?
- Is the print an underbase or a top color?
- Is the artwork bold or detailed?
- Is hand feel important?
- Is this a fashion print or a durable athletic print?
A bold black print on a white cotton shirt can often use a higher mesh than a bold white print on a black shirt.
Why?
Because black ink on white fabric does not need much ink deposit to show.
White ink on black fabric needs more ink deposit, better opacity, or an underbase system to look bright.
That is why mesh selection depends on the full job.
Ink Color vs Garment Color
Ink color and garment color play a huge role in mesh selection.
Dark ink on a light garment
Dark ink on a light shirt usually covers easily.
Example:
Black ink on a white cotton shirt.
You may not need a heavy ink deposit. A higher mesh can often give you a smoother print with better detail and softer hand.
Light ink on a dark garment
Light ink on a dark shirt is harder.
Example:
White ink on a black shirt.
The ink has to block the dark fabric underneath. That usually requires more deposit, a better white ink, an underbase, or a print-flash-print method.
This is where lower mesh counts may help.
Bright color on a dark garment
Bright colors on dark shirts often need an underbase.
Example:
Red ink on a black shirt.
The red may look dull if printed directly onto the black garment. A white underbase can help the red sit on top and stay bright.
In this case, the mesh for the underbase and the mesh for the top color may be different.
Mesh Count and Underbases
Underbases are a major reason mesh selection matters.
An underbase is usually white ink printed under colors on a dark garment.
The underbase gives the top colors a brighter surface to print on.
But the underbase must be controlled.
Too little underbase can make top colors dull.
Too much underbase can make the print thick, rough, and heavy.
For bold designs, a lower mesh may be used for the underbase.
For detailed designs or simulated process, a higher mesh may be better because it gives more control and helps preserve detail.
The right underbase mesh depends on:
- artwork detail
- shirt color
- fabric texture
- white ink opacity
- print-flash-print needs
- top color brightness
- desired hand feel
A good underbase should support the print without becoming the whole print.
Mesh Count and White Ink
White plastisol ink is where mesh selection gets very important.
White ink is usually thicker than many colored inks. It also has to cover better because it is often printed on dark garments.
If the mesh is too high, the ink may not deposit enough to look bright.
If the mesh is too low, the print may feel heavy or rough.
Common white ink mesh choices may include:
- 86–110 mesh for heavy deposit and bold designs
- 110–156 mesh for general white printing and underbases
- 156–180 mesh for cleaner white prints with better control
- 180–230 mesh for finer detail, smoother hand, and controlled underbases
These are starting points, not absolute rules.
The right choice depends on the ink, artwork, garment, stencil, and press setup.
Mesh Count and Halftones
Halftones need more control than bold spot color printing.
A halftone image is made of dots. Those dots must be held by the stencil and printed cleanly through the mesh.
If the mesh is too low, the dots may look rough, gain too much, or lose detail.
If the mesh is too high, the ink deposit may be too light, especially on dark garments.
A common rule of thumb is:
Mesh count should be roughly 3.5 to 4 times the halftone LPI.
For example:
| Halftone LPI | Suggested Mesh Range |
|---|---|
| 45 LPI | 160–180 mesh |
| 55 LPI | 180–230 mesh |
| 60 LPI | 230 mesh |
| 65 LPI | 230–255 mesh |
| 80 LPI | 280–305 mesh |
This is only a guide, but it helps explain why detailed simulated process and CMYK printing usually require higher mesh counts.
Basic Screen Printing Mesh Guide
The chart below is a practical starting point.
| Mesh Count | Common Uses |
|---|---|
| 48–86 | Glitter, shimmer, puff, specialty inks, very heavy deposits |
| 86–110 | Heavy white, athletic numbers, bold spot colors, rough fabrics |
| 110–156 | General white ink, underbases, bold designs, dark garments |
| 156–160 | General spot color printing, everyday plastisol work |
| 180–200 | Better detail, softer hand, controlled ink deposit |
| 230 | Fine detail, simulated process, controlled underbases |
| 280–305 | Halftones, CMYK/process work, very fine detail, thin ink films |
This chart is not a law.
It is a starting point.
Different inks, mesh brands, thread diameters, stencil thicknesses, and printing methods can change the final result.
Thread Diameter: The Detail Most Printers Skip
Two screens can have the same mesh count and still print differently.
Why?
Because thread diameter can be different.
A thicker thread takes up more space. That can reduce the open area where ink passes through.
A thinner thread can create more open area at the same mesh count.
That means one 156 mesh screen may not print exactly like another 156 mesh screen.
Thread diameter affects:
- open area
- ink release
- ink deposit
- print smoothness
- squeegee pressure required
- detail reproduction
- screen durability
This is why a mesh chart is a guide, not a complete answer.
Going Deeper: Open Area and Theoretical Ink Volume
Once you understand mesh count and thread diameter, you can start to understand two more advanced terms.
Open Area
Open area refers to how much of the mesh surface is open for ink to pass through.
More open area usually allows easier ink release and potentially more ink deposit.
Less open area can restrict ink flow and create a thinner deposit.
Theoretical Ink Volume
Theoretical ink volume is an estimate of how much ink the mesh can carry before other factors are added.
It is affected by:
- mesh count
- thread diameter
- mesh thickness
- open area
But remember, theoretical ink volume is not the same as actual print deposit.
Actual ink deposit also depends on:
- emulsion thickness
- stencil quality
- squeegee angle
- squeegee pressure
- squeegee speed
- off-contact
- ink viscosity
- garment texture
- press setup
This is why two printers can use the same mesh count and still get different results.
What About S Mesh or Thin Thread Mesh?
Thin thread mesh, often called S mesh, changes the way a screen prints.
Because the threads are thinner, S mesh can offer more open area at a similar mesh count. That can improve ink release and make the screen easier to print through.
In simple terms:
A thin thread mesh may let you print with better detail and better ink release than a standard mesh at the same count.
That can be valuable for white ink, simulated process, smoother prints, and less squeegee pressure.
But S mesh also deserves its own discussion because cost, durability, tension, and production style all matter.
We will cover standard mesh vs S mesh in a separate article.
Common Mesh Selection Mistakes
Mistake 1: Choosing mesh only by the number
A 110 mesh is not automatically right or wrong.
It depends on the job.
Mistake 2: Using one mesh count for everything
A shop that only uses one mesh count will eventually run into problems.
Different jobs need different screens.
Mistake 3: Using too low of a mesh for detail
Too much ink can blur detail and make small text fill in.
Mistake 4: Using too high of a mesh for white ink
Too little ink deposit can make white ink look weak or gray on dark garments.
Mistake 5: Ignoring garment color
Printing black on white is not the same as printing white on black.
Mistake 6: Ignoring fabric texture
Rough garments, fleece, and textured fabrics may need more ink deposit than smooth cotton.
Mistake 7: Blaming the ink when the mesh is wrong
Sometimes the ink is not the problem.
The screen may simply be holding back too much ink or allowing too much ink through.
How to Choose Mesh Count in the Real World
Before choosing mesh, ask these questions:
1. How detailed is the artwork?
Bold artwork can use lower mesh.
Fine detail needs higher mesh.
2. What color ink are you printing?
Light ink often needs more deposit than dark ink.
3. What color is the garment?
Dark garments usually require more control and often more opacity.
4. What type of fabric is it?
Cotton, fleece, polyester, performance wear, and blends all print differently.
5. Is this an underbase or a top color?
Underbases often need opacity, but they should not be too heavy.
Top colors may need brightness, detail, or smooth hand.
6. What feel does the customer expect?
A fashion print may need a softer hand.
An athletic number may need durability and coverage.
7. Are you printing halftones?
Halftones need mesh that can hold and reproduce dot detail.
Final Thought
Mesh count is not just a number.
It is one of the main controls in screen printing.
The right mesh helps you control ink deposit, opacity, detail, hand feel, and production consistency.
Lower mesh counts generally deposit more ink.
Higher mesh counts generally deposit less ink and hold more detail.
But the full picture includes thread diameter, open area, stencil thickness, ink type, garment color, fabric texture, squeegee technique, and press setup.
Once you understand that, mesh selection stops being guesswork.
You stop asking, “What mesh should I use for everything?”
You start asking, “What mesh makes sense for this job?”
That is when your prints become more consistent, more professional, and easier to troubleshoot.
