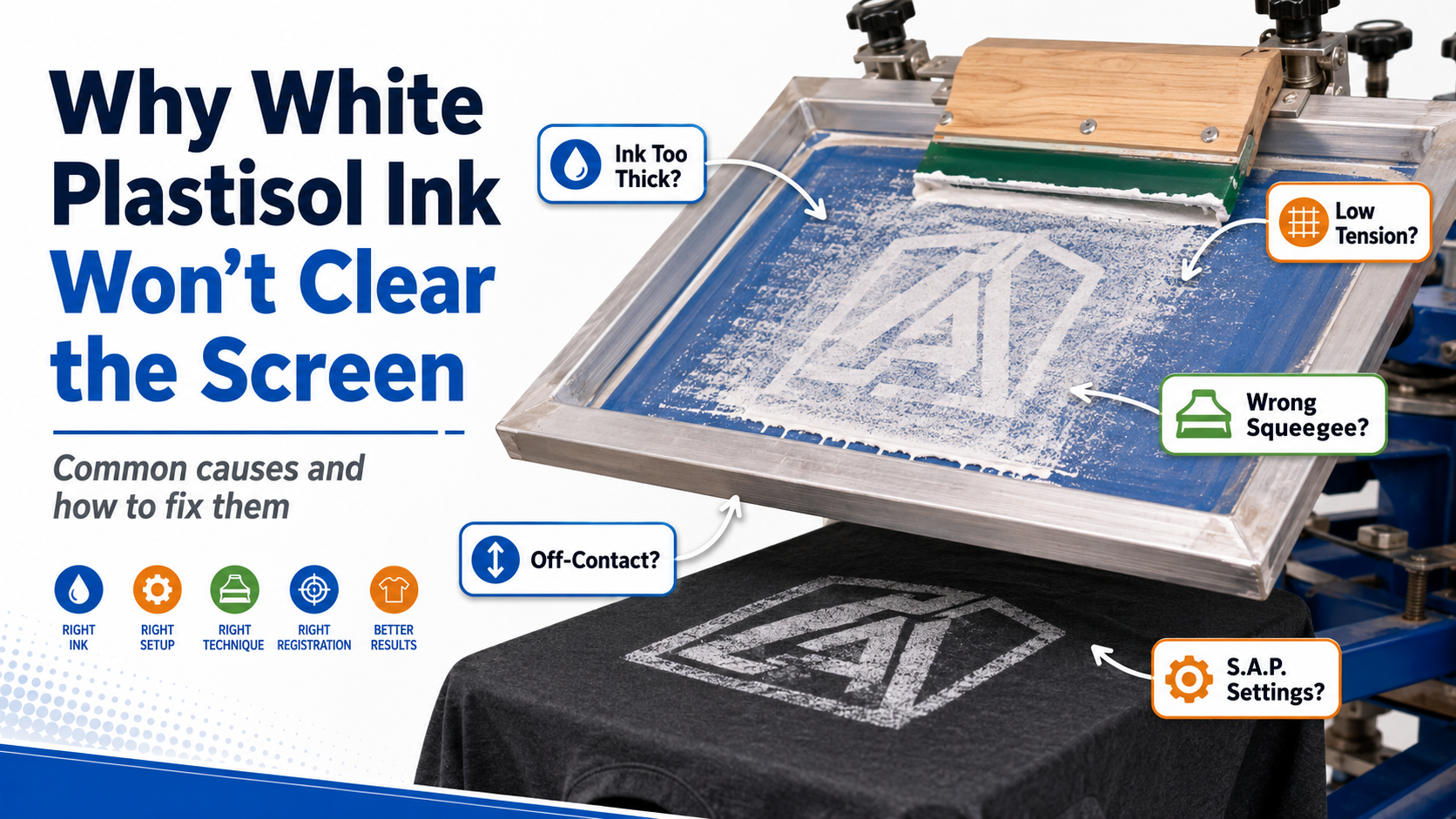

One of the most frustrating problems in screen printing is watching white plastisol ink build up in the screen instead of clearing cleanly through the image area.
You make a print stroke, lift the screen, and instead of seeing a clean stencil opening, you see:
- Ink left behind in the image area
- A cloudy or hazy print
- Rough edges
- Loss of detail
- Uneven opacity
- Extra pressure required to clear the screen
The natural reaction is:
“This white ink is too thick.”
Sometimes that is true.
But professional screen printers know the answer is rarely just the ink.
White plastisol clearing is a system problem. The ink, screen mesh, tension, stencil, squeegee, off-contact, speed, angle, and pressure all work together.
When those variables are balanced, even high-opacity white inks can print smoothly and consistently.
1. Your Ink May Be Too Thick — But Understand Why
White plastisol inks are designed differently than many other inks.
High-opacity whites contain a large amount of pigment and are formulated to provide:
- Maximum coverage
- Brightness on dark garments
- Strong opacity
- Good print durability
Because of this, white inks often have a higher viscosity.
However, plastisol also has a unique characteristic called thixotropy or false body.
What does that mean?
Ink can appear thick when sitting still but become easier to print when shear force is applied.
The movement of:
- Mixing
- Flooding
- Squeegee pressure
- Ink passing through mesh
helps lower the working viscosity.
The goal is not simply to make ink thinner.
The goal is to properly condition the ink so it flows through the screen while maintaining the performance characteristics it was designed for.
2. Proper Ink Mixing Matters
One of the most overlooked causes of white ink problems is improper mixing.
Before printing, white plastisol should be thoroughly mixed to restore the correct working viscosity.
Recommended mixing:
- Use slow-speed mixing
- Keep mixing below approximately 60 RPM
- Allow enough time for the ink to fully condition
The goal is to break down the false body of the ink without damaging the ink chemistry.
Beware of the Social Media Drill Hack
A common internet recommendation is using a high-speed drill to quickly loosen thick ink.
This may appear to work initially, but it can create more problems.
High-speed drills create friction and heat.
At first:
- Heat lowers viscosity
- Ink appears easier to print
But excessive heat can later cause:
- Increased tack
- Stringiness
- Poor ink release
- Inconsistent printing behavior
The ink may feel easier for a few minutes but become more difficult during production.
Professional printers do not just chase a thinner ink.
They control the entire printing system.
3. Older Ink May Need Curable Reducer
Plastisol ink that has aged may become thicker due to storage conditions and exposure to air.
If proper mixing does not restore the working viscosity, a curable reducer may help.
General guideline:
- Start with approximately 2%
- Do not exceed 5% unless recommended by the ink manufacturer
Reducer should be used carefully.
It is not a replacement for:
- Proper mixing
- Correct mesh selection
- Proper tension
- Correct print parameters
A poorly tuned print system cannot be fixed by adding reducer.
4. Screen Tension Is Often the Real Problem
Many printers overlook screen tension when troubleshooting white ink.
A loose screen does not properly shear the ink.
Instead of snapping away from the garment, the mesh flexes with the squeegee.
The result:
- More pressure is required
- Ink does not clear cleanly
- Detail suffers
- Edges become softer
- Print consistency decreases
A properly tensioned screen allows the mesh to:
- Open during the print stroke
- Shear the ink cleanly
- Release from the garment quickly
Higher tension generally allows:
- Lower off-contact
- Faster print speeds
- Less pressure
- Cleaner clearing
Lower tension often requires:
- More off-contact
- More pressure
- Slower printing
Screen tension is one of the hidden variables behind great white ink performance.
5. Your Squeegee Choice Matters
The squeegee is responsible for moving ink through the screen.
The wrong blade can make a good ink and good screen perform poorly.
70 Durometer Medium Blade
The most common starting point.
Benefits:
- Versatile
- Good balance of ink deposit and shear
- Works well across many mesh counts and inks
60 Durometer Soft Blade
Can be useful when:
- A heavier ink deposit is needed
- Printing manually
- Working with specialty applications
However:
The softer blade flexes more and can roll over during printing.
This can create:
- More ink deposit
- Reduced detail
- Less effective clearing
80 Durometer Hard Blade
Better for:
- Fine detail
- High-resolution work
- Shearing thicker inks
70/90/70 Triple Durometer
A specialty blade that combines:
- Softer center flexibility
- Harder printing edge
- Better detail control
Often used when printers need both coverage and detail.
6. A Dull Squeegee Edge Can Cause Clearing Problems
A sharp squeegee edge is critical.
A damaged or rounded edge:
- Requires more pressure
- Reduces shear
- Creates inconsistent ink deposit
- Makes clearing more difficult
Rotate, replace, or sharpen squeegees regularly.
Do not store squeegees covered in ink.
Ink exposure can cause the blade to:
- Swell
- Lose flexibility
- Break down faster
7. Off-Contact Controls Ink Release
Off-contact is the distance between the screen and the garment.
This gap allows the screen to:
- Touch the garment at the transfer point
- Release immediately behind the squeegee
A standard starting point:
1/16" to 1/8"
Common references:
- Approximately the thickness of a coin
- Higher tension screens can often run lower off-contact
- Lower tension screens usually require more gap
Too little off-contact:
- Screen does not release properly
- Rough texture
- Orange peel appearance
- Poor clearing
Too much off-contact:
- Requires more pressure
- Can distort the image
- Makes registration more difficult
Off-contact and tension must be considered together.
8. Speed, Angle & Pressure Control Ink Shear
Professional printers often refer to this as:
S.A.P.
Speed • Angle • Pressure
These three variables determine how effectively ink moves through the screen.
Speed
Faster speed:
- More ink shear
- Lower ink deposit
- Better for fine detail
Slower speed:
- More ink deposit
- More coverage
- Higher risk of overfilling the stencil
Angle
The goal is to print on the edge of the blade, not the face or side.
Too much angle:
- Smears ink
- Increases deposit
- Can reduce detail
Too little angle:
- Shears too aggressively
- Can reduce opacity
Pressure
The correct pressure is:
The lightest pressure required to clear the image area.
Too much pressure creates:
- Heavy hand
- Dot gain
- Dot distortion
- Rough prints
- Slower production
- Higher costs
More pressure does not always create a better print.
9. Mesh Count and Ink Deposit Must Match
Your mesh controls how much ink can pass through the screen.
Lower mesh:
- More ink deposit
- More opacity
- Less detail
Higher mesh:
- Less ink deposit
- More detail
- Softer hand
White ink on dark garments often requires a balance between:
- Coverage
- Opacity
- Detail
- Hand feel
The best mesh choice depends on:
- Artwork
- Garment
- Ink
- Production requirements
10. Finding the Sweet Spot Takes Experience
There is no single magic setting for every white ink.
The best printers learn how all variables interact:
Ink viscosity
↓
Mesh selection
↓
Screen tension
↓
EOM and stencil thickness
↓
Squeegee choice
↓
Off-contact
↓
Speed, angle, pressure
When these variables work together, the screen clears naturally.
White Ink Troubleshooting Quick Guide
| Problem | Possible Causes |
|---|---|
| Ink stays in the screen | Thick ink, low tension, dull blade |
| Cloudy print | Poor clearing, wrong SAP settings |
| Heavy print feel | Too much pressure, slow speed, low mesh |
| Loss of detail | Soft blade, excessive deposit, poor stencil |
| Rough edges | Overfilled stencil, poor release, excessive pressure |
| Ink strings | Overheated ink, improper mixing |
| Print changes during run | Ink temperature, pallet heat, inconsistent settings |
Before You Change Your Ink, Check Your System
White plastisol ink is not difficult because it is bad ink.
It is difficult because it requires balance.
The best screen printers do not solve every problem by changing ink. They understand how the entire printing system works together.
Before adding reducer, changing ink, or blaming the manufacturer, check:
✅ Ink conditioning
✅ Mesh selection
✅ Screen tension
✅ Squeegee edge and durometer
✅ Off-contact
✅ Speed, angle, pressure
✅ Garment and production conditions
A properly tuned screen printing system will make even demanding white inks print cleaner, faster, and more consistently.
Final Thought
White ink clearing problems are rarely caused by one thing.
They are usually a sign that one or more variables are out of balance.
Control the variables, and the print quality follows.
