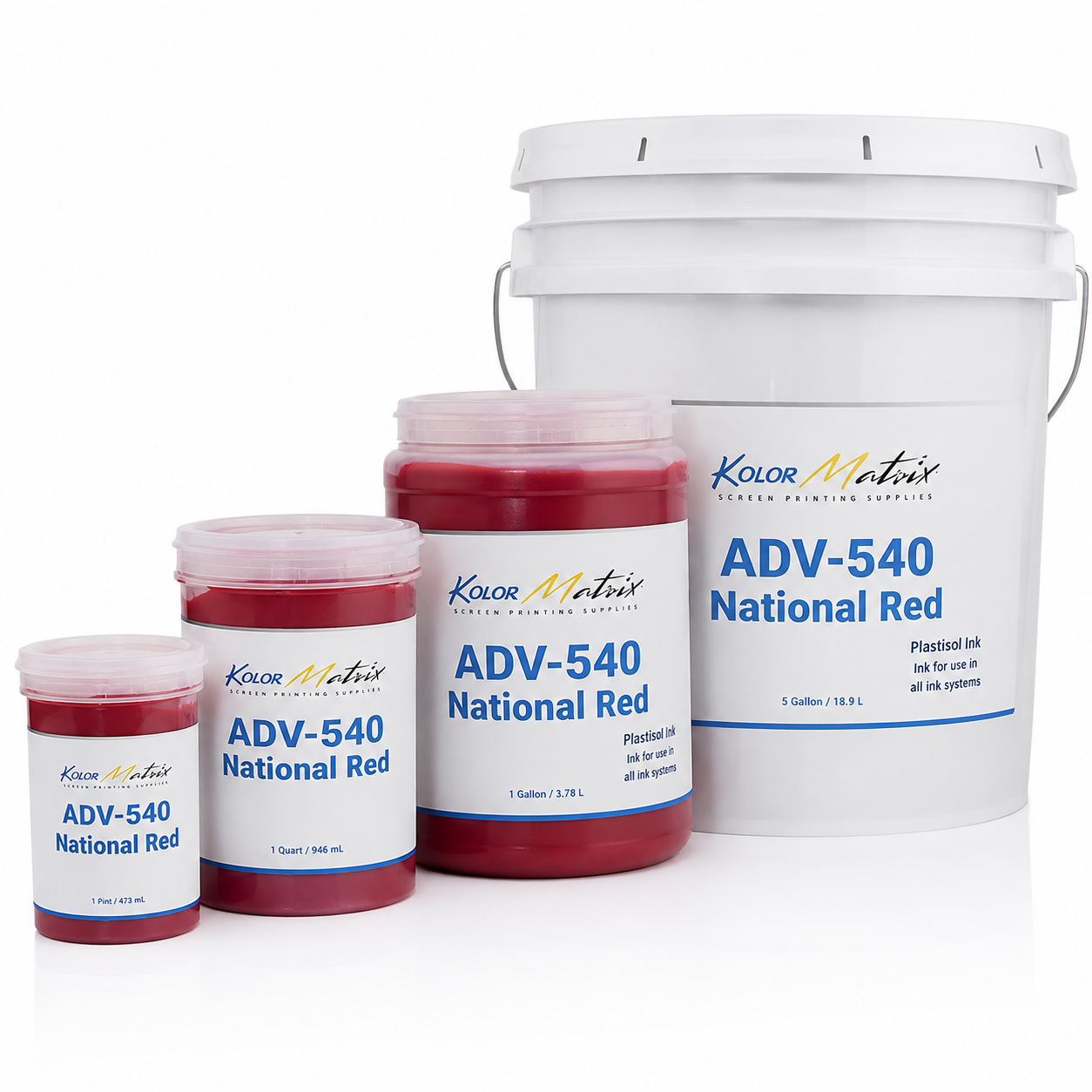

ADV Premium Colors Plastisol Ink

In stock
SKU: ADV20O
Regular price $24.58

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Advantage is an Ultra-Premium Plastisol Ink that has been formulated to have a short body and is extra creamy to be easy to print, wet on wet with minimal build-up. Plus a fast shearing action to allow you to print Faster. Works well for Manual and Automatic high-production screen printing.

We print insane detail, wet on wet in our training classes and at tradeshows all the time. Scroll through the above pics to see actual sample prints done with ADV inks, pics do not necessarily contain the color ink for this listing but represent the quality of the ink line.

Rated scale of 1 to 5, 1 being minimal and 5 maximum or best.

Opacity: 4

Viscosity / Creamy: 4

Bleed Resistance: 1

Build Up: Low

Definition: High

Although most Advantage inks are Very Opaque, they are intended for printing on to light-colored garments or over a flashed under base white. Optimum opacity is achieved with Super Advantage inks which are formulated for optimal coverage and allow you to print flash print onto dark-colored garments without an under base, of fabrics where bleeding is not a concern.

Advantage inks may be used to print cold peel transfers.

Recommended Substrates
Cotton, cotton blends, polyesters, and some nylon (generally open weave or mesh types) as well as other synthetics.

Gel or flash-cure: Approximately 230 Degrees F

Full cure: 320 Degrees F

Transfer Temperature: 350 Degrees F.

Fusion tests should be made prior to any production run. Failure to cure properly causes poor wash fastness, inferior adhesion and increased dye migration.

Opacity: Very Good, use Super Advantage inks for maximum opacity.

Tension: 15-20 acceptable, 25-35 recommended

Squeegee type: 60-70, 60/90/60 or 70/90/70 durometer.

Squeegee blade: Sharp

Squeegee angle: 10 to 20 degrees

Squeegee Pressure: Avoid excess pressure

Squeegee speed: Medium to Fast

Wash-Up: ECO2770 Textile Ink degrader or ECO4400 Press Wipe.

Mesh: Use 86-160 mesh for optimum opacity.

Use 160-305 mesh for overprinting and fine-line printing.

Use 160-305 mesh for printing onto white or light fabrics.

For process colors use 230-305 mesh

Use 86-120 mesh for cold peel transfers.

Stencil: CBX7500 is recommended but will work with Any Conventional direct emulsion or capillary films.

Off contact: 1/16"

Emulsion over mesh: 15 - 20%

Storage

65-95F

Avoid direct sunlight

Keep container sealed

The sample pic of actual t-shirts printed on a Vastex V2000 manual press, during our 3 day Pro Screen Printing Class, on average 50% of the students have never screen printed before. They used the following items to achieve these gorgeous prints.

  • Advantage Plastisol Inks
  • CBX7500 Hi-Rez Pink Emulsion
  • Hi-Definition Water Proof Inkjet Film
  • Aluminum Frames 20x24 s/w 230 yellow Satti mesh
  • Ergo Aluminum Handle Squeegees with 70 durometer blade

Inks manufactured for Kolormatrix are certified by one of the largest plastisol ink manufacturers in the world to be Phthalate Compliant and does not knowingly add plasticizers containing the phthalates listed and outlined in California Bill 1108, CPSIA HR-4040 and Oeko-tex Standard 100. The plasticizers identified may include di-(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP), diisononyl phthalate (DINP), diisodecyl phthalate (DIDP), di-n-octyl phthalate (DnOP), (DIBP) Di-iso-butyl, and (DMP) Dimethylphthalate, including esters of ortho-phthalic acid and are not direct ingredients in the manufacture of Claira High Opacity Non-Phthalate Inks.

Info

  • - Private Labeled Ultra Premium Inks
  • - Opaque Vibrant Color
  • - Creamy Short body for easy printing
  • - Wet on Wet Printing ( we do it all the time in class)
  • - Cure: 320 F
  • - Flash 230 F
  • - Opacity: 4/5
  • - Bleed Resistance: 1/5
  • - Creamy: 5/5

SDS Safety Data Sheet: Download
