Riso GoccoPro Computer to Screen

RISO's digital screen maker, the GOCCOPRO series, enables a digital screen making method that is easier on the environment than conventional screen making system.
Eliminating the need for emulsions also eliminates the washout step.
No exposing or drying saves on power consumption.
- No need for water
- Minimal resin consumption
- Reduced power consumption
- Less Floor Space
- Lower Labor Costs
- Achieve Environmentally Green Screen Printing with GOCCOPRO Series
No need for water
Digital-based thermal technology eliminates the need for exposure and washout.
No waste water means 12 liters*1 less water usage per printing than conventional screen processes.
- *1: 3 l/min flow rate.
- *Numerical value represents resource consumption when making an A3-size screen on a conventional system.
No need for washout.
Minimal resin consumption
Substantially reduced resin consumption compared with conventional screen printing means valuable resource saving.
Resin consumption comparison
GOCCOPRO series 0.4g
Conventional screen making 10.0g
- *Numerical value represents resource consumption when making an A3-size screen on a conventional system.
No need for applying the emulsions to the screen fablic.
Reduced power consumption
Easy operation.
No need for positive film, exposure or drying.
Substantially reduces power consumption.
Power consumption comparison
GOCCOPRO series 0.005kWh
Conventional screen making 0.07kWh*2
- *2:Calculated under the following conditions:
a.film making process (2 minutes) using 0.001kWh
b.exposure (2 minutes) using 0.037kWh
c.drying (2 minutes using a dryer) using 0.025kWh.
- *Numerical value represents resource consumption when making an A3-size screen on a conventional system.

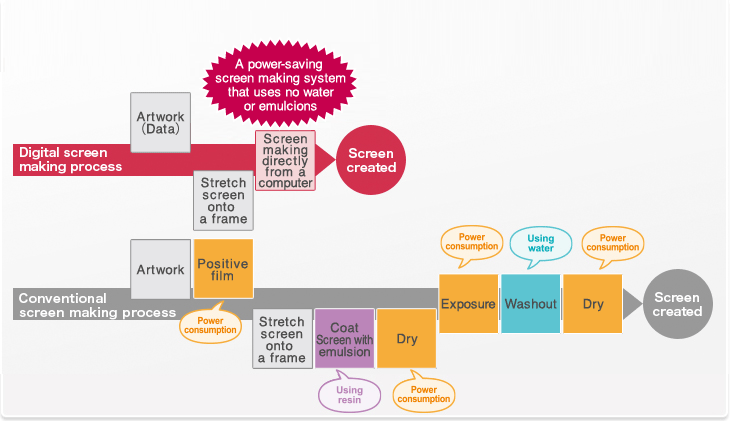

Conventional screen making
Achieve Environmentally Green Screen Printing with GOCCOPRO Series

Compare the 3 GoccoPro Computer to Screen Systems
Image D.P.I. | 600 x 600 dpi | 600 x 600 dpi | 600 x 1200 dpi BEST |
Max Screen Size | 23" x 31" | 25" x 36" | |
Max Image Size | 11.69 x 31.5" | 16" x 24" | 18" x 30" |
Screen Making Time | 105 seconds (16.5" x 23.2") | 120 seconds (23"x31') | 200 seconds (25" x 36") |
High Resolution Halftone | YES | YES | YES |
Spot Color Images | YES | YES | YES |
Simulated & CMYK Process | NO | YES | YES |
Pre-Registration Lock down | NO | Magnetic Bar | Sliding Lock Down Bar BEST |
Warranty - Thermal Printhead | 2 Year | 2 Year | LIFETIME BEST |
Printer Warranty | 2 Year | 2 Year | 2 Year |
Printer Dimensions | 24" x 25.5" x 15.4" | 38.6" x 28.4" x 18.9" | 48.5" x 31.5" x 18.9" |
Weight | 78 lbs | 148 lbs | 154 lbs |
Power | 120V - 3 amps | 120V - 2.5 amps | 120V - 3.6 amps |
